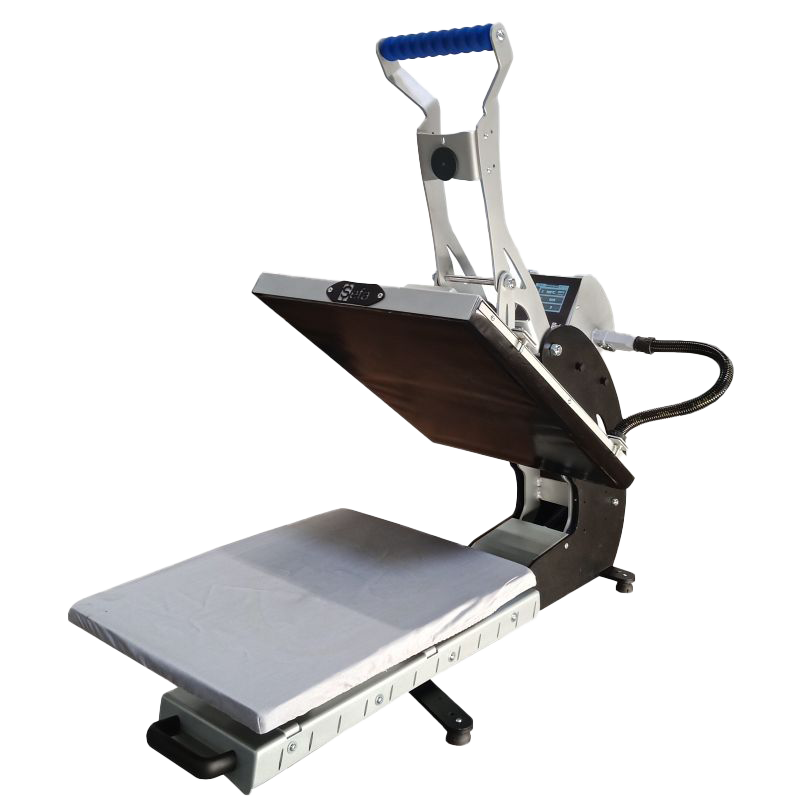

CLAM PRO v5
Originally created for applying flex and screen printing transfers in sports shops, the Clam Pro v5 is also suitable for medium-volume textile marking runs, textile sublimation, rigid substrates sublimation (aluminium, MDF, wood, porcelain, etc), DTG (GPX version) and laser printing.
Auto-open heat transfer press with drawer-type lower plate.
Nomex® cover of 40x50cm included.
Strengths:
- Auto-open
- Quick-change platens
- T-shirts threaded from front or rear of the plate
- Pre-heat time
- Dual item counter
- Double position option for passing from strong to light pressure without touching the pressure knob
- Designed and manufactured in France
- Two-year machine warranty
- Ten-year warranty on heating elements
Electronics:- Touch electronics developed by Sefa
- Accurate and fast regulation (PID control)
- Double timer (main + pre-heat)
- 2 cycle counters
- 3 settable programs
- Stop cycle function
|
| Type | Electromagnetic |
| Operation | Slide - Tray with drawer, Clam - Portfolio Opening |
| Platen size | 40x50 cm / 16x20 " |
| Max thickness | 15 mm |
| Weight | 58 Kg / 128 lbs |
| Pressure | 330 g/cm² |
| °C / °F Max | 220 °C / 429 °F |
| Power | 3200 W |
| Power supply | 240 V Single-phase + Neutral + Ground |
| Amperage | 14 A |
| Applications | Flex, Direct to Garment, Pretreatment, Sublimation Rigid Substrate, Textile Sublimation, Laser Transfer, Screen Printing |
| Dimension | 969x990x453 mm / 38x39x18 " |
![[HOU-50] Nomex Protection Cover 40 X 50cm](/web/image/product.product/6554/image_512/%5BHOU-50%5D%20Nomex%20Protection%20Cover%2040%20X%2050cm?unique=d941d28)

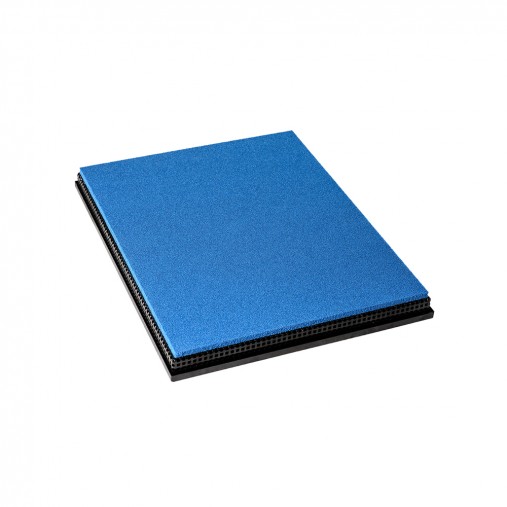

![[PLA-DRY] Sefa Pre-Treatment Drying Base (Rotex)](/web/image/product.product/6579/image_512/%5BPLA-DRY%5D%20Sefa%20Pre-Treatment%20Drying%20Base%20%28Rotex%29?unique=4f07636)
