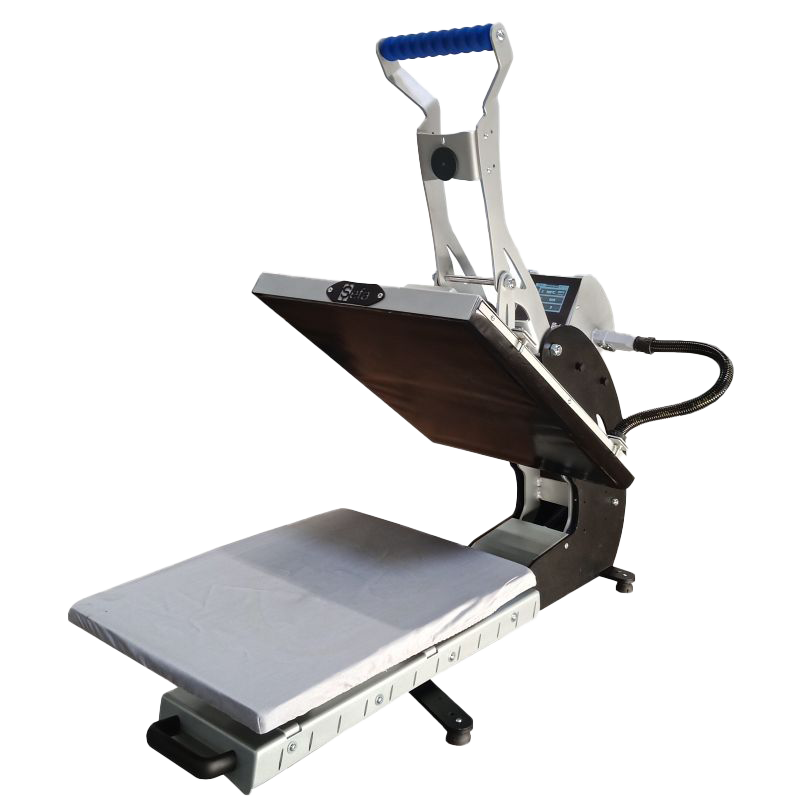

e-CLAM PRO 2POS
The e-Clam Pro 2POS has double position for switching from high to low pressure without touching the pressure wheel
It is suitable for medium-volume textile marking, in particular textile sublimation, on rigid substrates (aluminium, MDF, wood, porcelain, etc.), for drying pre-treatment and inks in direct printing, and for laser printing.
Auto-open heat transfer press with drawer-type lower plate.
Strengths:
- Auto-open
- Quick-change platens
- T-shirts threaded from front or rear of the plate
- Programmable pre-heat time
- Dual item counter
- Double position option for switching from strong to light pressure without touching the pressure knob
- Designed and manufactured in France
- Two-year machine warranty
- Ten-year warranty on heating elements

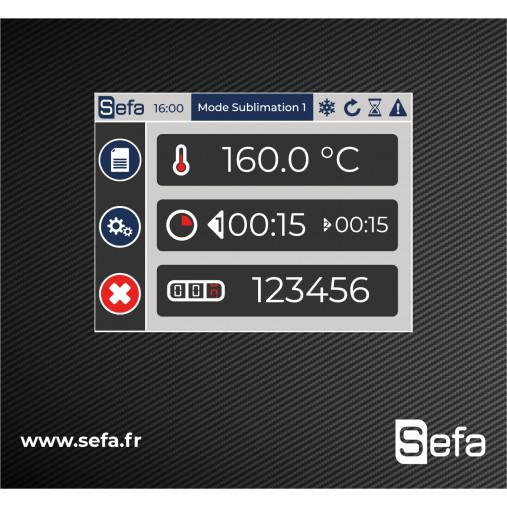

Sefa Electronics:- Touch electronics developed by Sefa
- Accurate and fast regulation (PID control)
- Double timer (main + pre-heat)
- 2 cycle counters
- 3 settable programs
- Stop cycle function
|
| Type | Electromagnetic |
| Operation | Slide - Tray with drawer, Clam - Portfolio Opening |
| Platen size | 40x50 cm / 16x20 " |
| Max thickness | 15 mm |
| Weight | 58 Kg / 128 lbs |
| Pressure | 330 g/cm² |
| °C / °F Max | 220 °C / 429 °F |
| Power | 2200 W |
| Power supply | 240 V Single-phase + Neutral + Ground |
| Amperage | 10 A |
| Applications | Flex, Direct to Garment, Pretreatment, Sublimation Rigid Substrate, Textile Sublimation, Laser Transfer, Screen Printing |
| Dimension | 993x973x455 mm / 39x38x17 " |
